3.0 Whipple Stage 1 Supercharger 750HP (18-22 Mustang GT)

• Compatible with 2018-2022 Mustang GT
• 750 horsepower / 615 lb-ft torque with 93 octane fuel
• Generation 5 - 3.0L twin screw supercharger
• 4.00” supercharger pulley
• Utilizes factory 80mm throttle body and fuel pump
• 55 lb. fuel injectors
• Includes Whipple Tomahawk handheld programmer
• 100,000 mile service interval
• Optional 3 year/36,000 mile warranty available from Whipple Superchargers
• Wrinkle black finish
• 50-state legal: EO D231-76
• *Power numbers are quoted with 93 octane under ideal conditions, actual results may vary depending on conditions and testing procedures. 91 octane testing will always result in lower power numbers

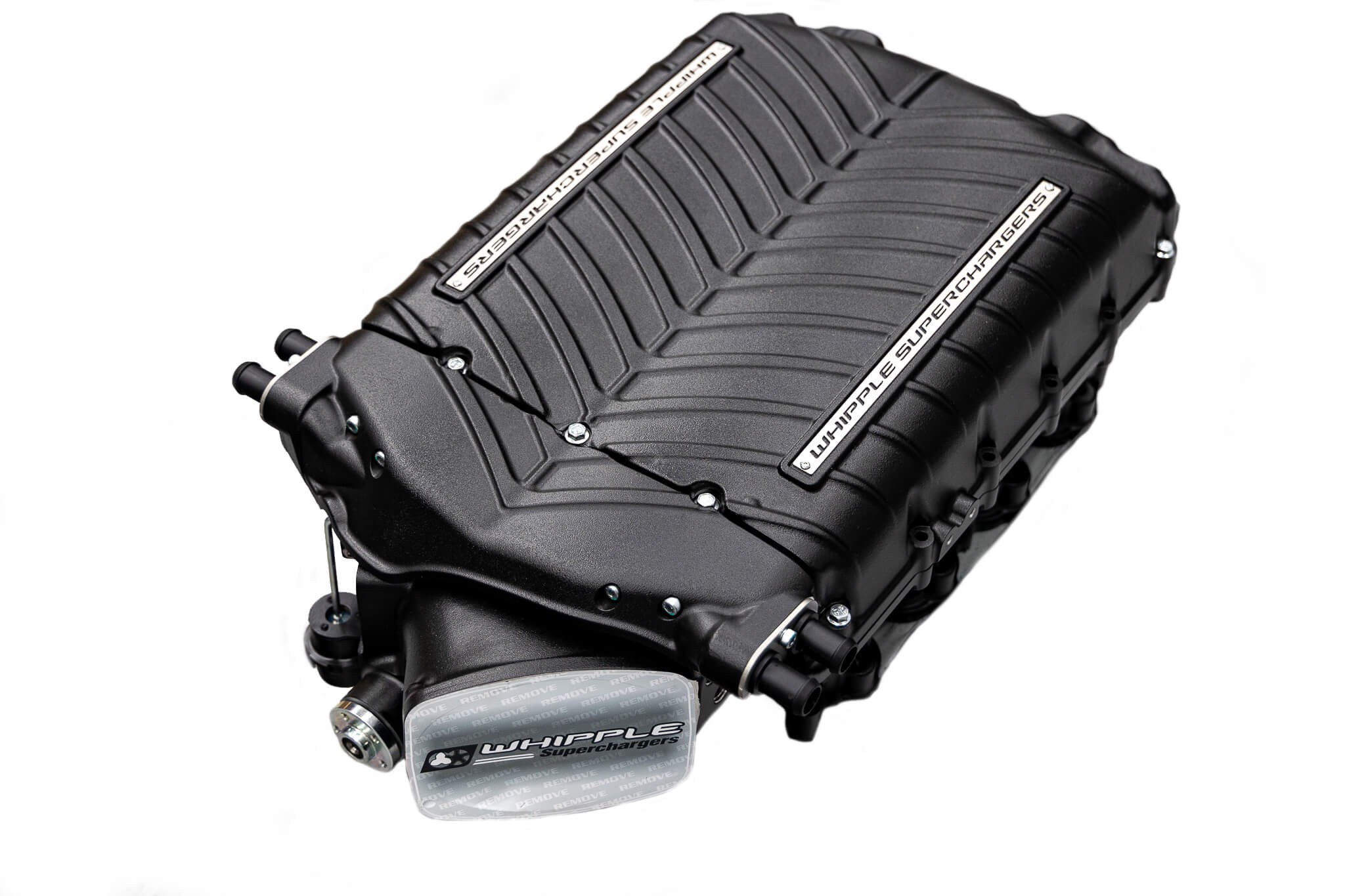

The Generation 5 - 3.0L Whipple Supercharger System is a front feed, twin screw supercharger that combines Whipple’s latest technology to produce 750 horsepower and 615 lb-ft torque. That’s a whopping +290 horsepower increase over factory power output. This is the same supercharger that we use on the 2022 Mustang RTR Spec 3.

A 4.00” supercharger pulley generates between 9-10psi of boost and a minimum of 91 octane is required. The unique, inverted design of the supercharger allows Whipple to integrate dual intercoolers, one for each bank of cylinders. The compressed air is cooled before it enters the combustion chamber resulting in maximum horsepower and efficiency.

The Whipple Tomahawk handheld programmer allows you to install a unique PCM (Powertrain Control Module) calibration that reconfigures the engine functions of your Mustang. An IAT2 harness and sensor is included to monitor the compressed, intercooled air to ensure the engine is operating safely in all environments.

What's in the Box:

• 3.0L Whipple Supercharger
• 4.00” supercharger pulley
• Dual core, dual pass intercooler system (under the supercharger lid)
• Single pass / high surface area heat exchanger
• High-Flow, cold air intake (CFD tested for maximum performance)
• Throttle body adapter
• Fuel rails
• Denso ITV24 High Performance Spark plugs
• 55 lb. fuel injectors
• Whipple Tomahawk handheld programmer
• IAT2 harness and sensor
• Hardware and harnesses to complete installation

Installation Time: (approx.) 10-12 hours

Difficulty Level:Advanced mechanical skill required
